What is Magfahren®？
Magfahren®is the total brand name of the Matsumoto Giken’s ESD Countermeasure Products, which can be proudly sent out to the World as a globally integrated grade.
There are two types available in Magfahren®, Coating type(MG[mag] Coat®) to provide Conductivity by applying Special Coating on the surface of existing products and Volume Conductive type which plastic resin itself has been inherently made Conductive.
Advantage of Magfahren®
- ●All products are processed manually
- ●Thus, it is possible to achieve Coating on the precision machineries such as scanners or Bar Code Readers etc.
Features of Magfahren®
- ●The resistant value is stable since it is independent to environmental factors as moisture.
- ●All ingredients used for Magfahren® have passed the high demanding requirements from HDD manufactures for Outgassing, Contaminations for ions or organic substances.
- ● It can also cope with Silicone-free requirements.
- ●Magfahren®Products bear MG[mag] sticker with our original design of symbol of ESD safe products.
The stickers are also made Conductive with surface resistant value of 107～9[Ω] which can be used safely and securely.
Coating Type (MG[mag]Coat®）
- ・MG[mag]Coat® is the unique technology to apply ESD protective coating on the surface of Plastic resins such as ABS, Acrylics, Polycarbonate etc. as well as Metals.
- ・Through our original and distinctive integrated technology, we arrange various types of conductive materials in order to achieve not only the stable and unchanging performance on ESD protection but moreover the excellent bonding strength as well as durability which allows long lasting use.
- ・Since MG[mag]Coat® can be applied on the existing finished products/tools including pens, files and such devices as keyboards it can also be applied on the products/tools or equipments which are currently used in your production lines.
- ・Moreover, applying coating on the surface of Metals which is conductive provides adequate resistant value effective to prevent unwanted charges by excess electricity.
Volume Conductive type
Since the plastic resin itself has been made Conductive, it is effective in protections from Friction charges, Separation charges and moreover Inducing charges for which concerns from the industry has been increasing.
It is available in various forms such as Clear Film, Binder, Tube, Electric Cable etc...
Magfahren®Product List
New product：
ESD face shield is born!
Introducing a new face shield with excellent transparency while being an ESD countermeasure!
This is the latest version of the Magfaren® product catalog.
If you are looking for something other than the listed items, please contact us.<
New product：
ESD face shield is born!
Introducing a new face shield with excellent transparency while being an ESD countermeasure!
This is the latest version of the Magfaren® product catalog.
If you are looking for something other than the listed items, please contact us.
Stationeries
| Product name | Model No. | Color | Specpfications & Features | |
|---|---|---|---|---|
 |

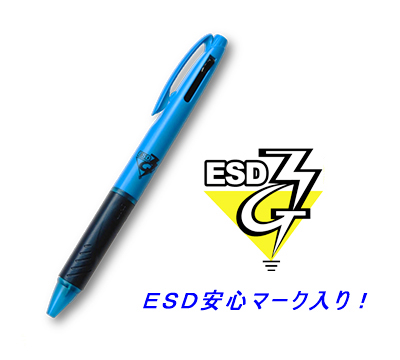

MG[mag] Ball Ball Point Pen Two Color Retractable |
001-JS2 | Blue | Ink: Black and Red |
 |

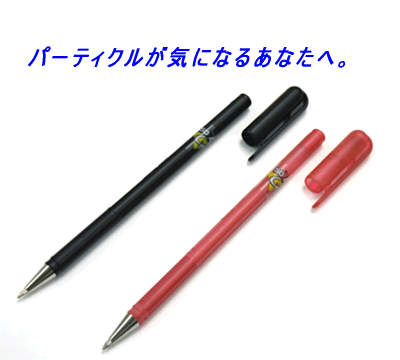

MG[mag] Ball Point Pen Cap Type |
001-BK-1A | Black | Ink: Black (Water-Resistant) |
| 001-BK-1B | Red | Ink: Red (Water-Resistant) | ||
 |

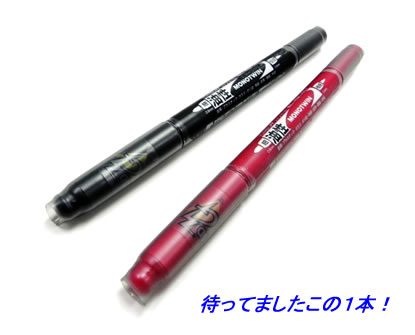

MG[mag] Marker |
116-T-BK | Black | Ink: Black (Oil-Base) Surface Resistant Value: 105-9[Ω] |
| 116-T-R | Red | Ink: Red (Oil-Base) Surface Resistant Value: 105-9[Ω] |
||
 |

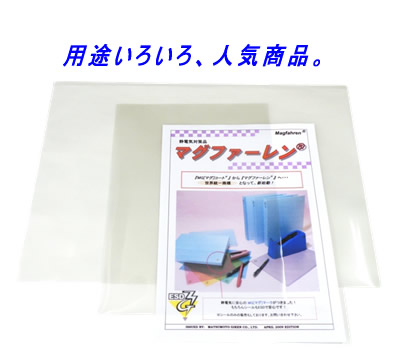

MG[mag] Clear Case A4, A3＊ |
002-A4 | Clear (colorless) |
＊Please contact us for other sizes. |
| 002-A3 | Clear (colorless) |
|||
 |

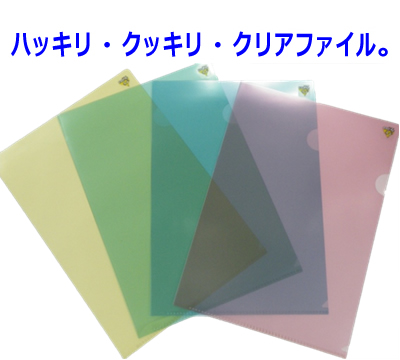

MG[mag] Clear Folder (A4) |
005-A4 | Yellow(Y) Blue(B) Red(R) Green(G) |
Resistant Value：107～10[Ω] |
 |

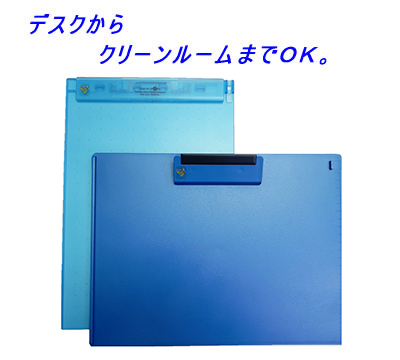

MG[mag] Clipboard |
003-JP8-TA4 (A4 Vertical) |
Blue (Skelton) |
＊Please contact us for other sizes. |
| 003-YA4-19J (A4 Horizontal) |
Blue | |||
 |

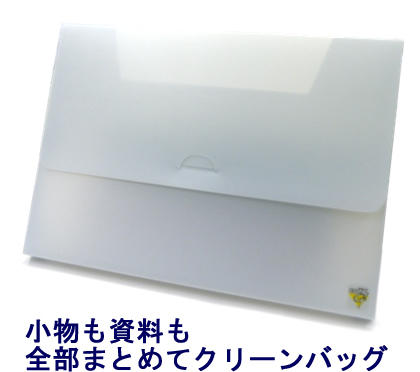

MG[mag] Carrying Case(A4) |
017-A4 | Light Blue | W310mm x H220mm x D20mm Volume Conductive Type Resistant Value:108～10[Ω] |
 |

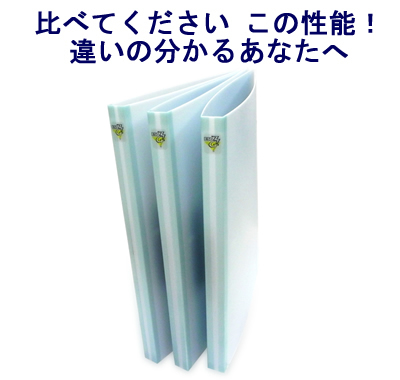

MG[mag] Binder(A4) Lever Clip Type |
019-A4 | Light Blue | D20mm Volume Conductive Type Resistant Value:108～10[Ω] |
 |

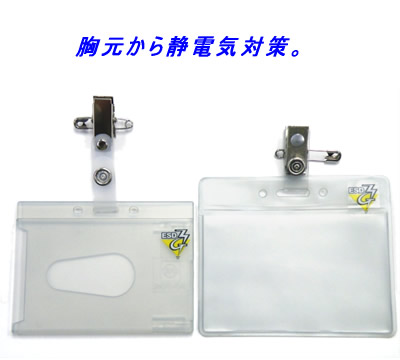

MG[mag] Name Card Holder |
004-YS-17L (Soft) |
Clear | Soft Type:Horizontal W91mm×H60mm |
| 004-YH (Hard) |
Clear | Hard Type: Horizontal W91mm×H55mm |
||
 |

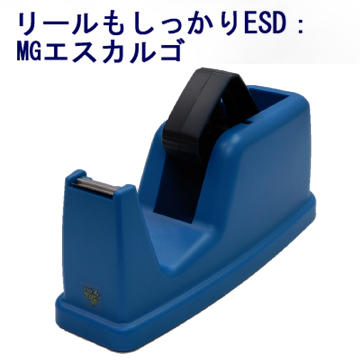

MG[mag] Tape Dispenser |
006-CR | Blue | W85mm×H115mm×D222 Weight: 1.4kg |
 |

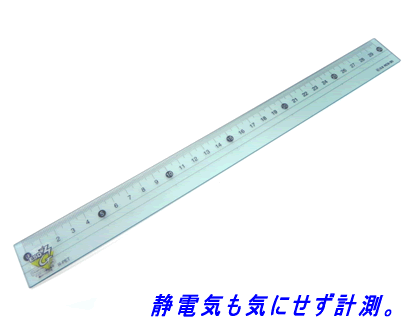

MG[mag] Ruler | 010-RCS30 | Blue | Pitch: 30mm |
 |

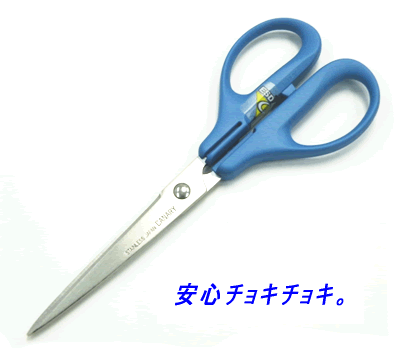

MG[mag] Scissors | 011-E175 | Blue | Length: 175mm |
 |

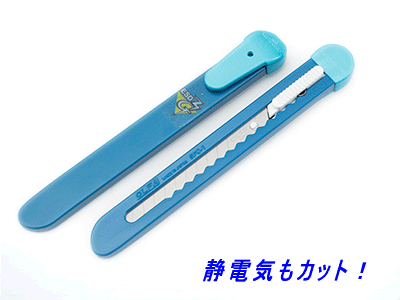

MG[mag] Cutter | 012-S127 | Blue | Length: 127mm |
 |
MG[mag] Stapler | 013-HD-10D | Blue | aximum Staple Limit:Approx. 20 pcs |
 |
MG[mag] Laminate Film (A4, A3) |
009-Ａ4 | Clear | A4 Surface Resistant Value: 107～8 [Ω] ＊IPA Resistant |
| 009-Ａ3 | Clear | A3 Surface Resistant Value: 107-8[Ω] ＊IPA Resistant |
||
 |

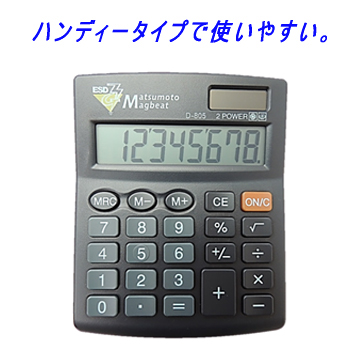

MG[mag] Calculator | 007-D-805P | Blue (Body:Black) |
W125mm×H102mm 8 digits display |
PC Related Devices
| Product Name | Model No. | Color | Specifications & Features | |
|---|---|---|---|---|
 |

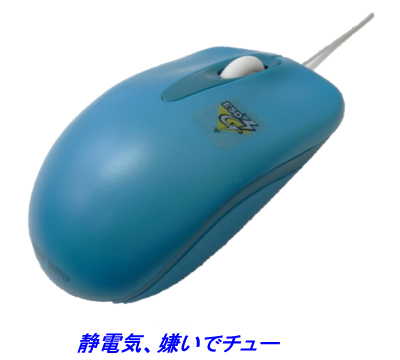

MG[mag] Mouse | 008-MS-BO | Blue | Optical PS/2 is not enclosed |
 |

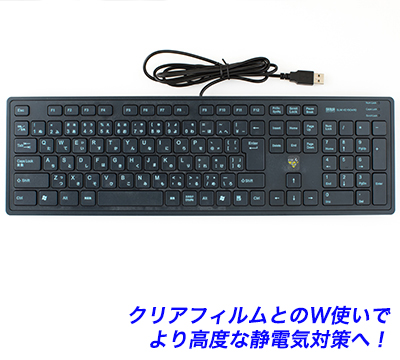

MG[mag] Keyboard | 014-SKB-SL16 | Blue (Body:Black) |
W443.5mm×H130.8mm×D22mm |
 |

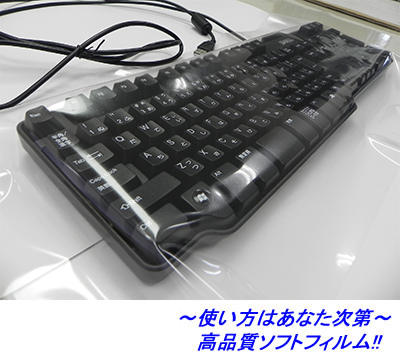

MG[mag] Clear Film | 021-K | Clear | Thickness: 0.1mm W500mm x H280mm Volume Conductive Type Resistant Value: 109[Ω] |
 |

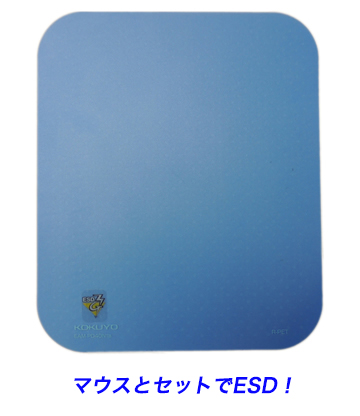

MG[mag] Mouse Pad | 022-PD40N | Blue | W150mm×H0.5mm×D180mm ＊Can be used for both optical and ball type mose. |
What is Fasline®？
Fasline®is a plastic sheet with the Conductive Coating applied on the surface of the plastic.
Features of Fasline®
High Quality approved by the World
- ●This product has been successfully approved by globally famed manufacturers for its high quality as an ESD countermeasure product.
- ●As for the base substrates various kinds of plastic materials* are available.
Moreover, it can also be used for deep draw designs, IPA-resistant type or particle protective type etc.
*Some plastics are not applicable. Please contact us for confirmation.
